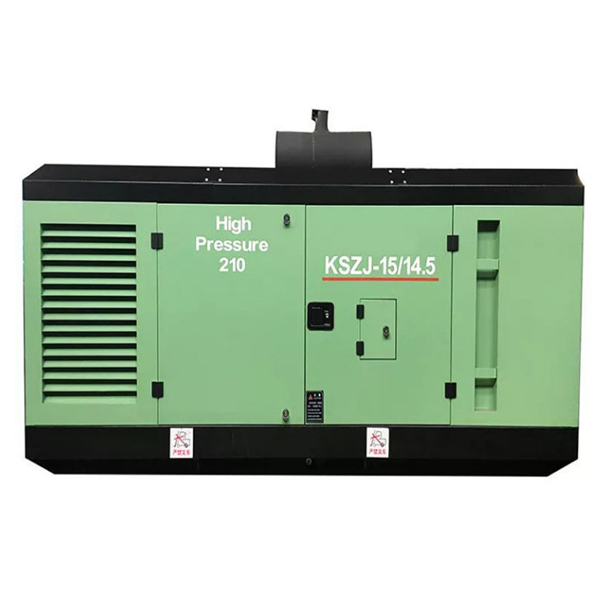

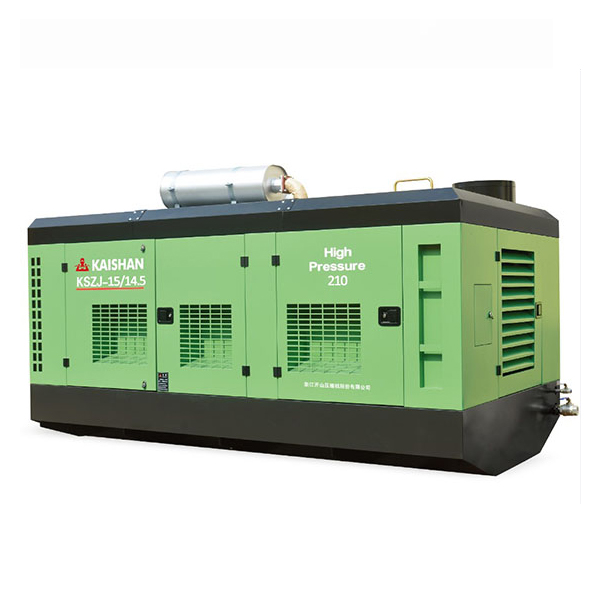

KSZJ-15/14.5 Stationary Screw Air Compressor
F.A.D: 15m3/min Rated Discharge Pressure: 14.5Bar Total Weight: 2500kg Dimension:3000*1520*1800mm
| Model No. | Capacity (F.A.D) | Working Pressure | Diesel Engine | Weight | Size | ||
| m3/min | cfm | bar | Psi | kg | (L*W*H)mm | ||
| KSZJ-15/14.5 | 15 | 530 | 14.5 | 210 | YuChai YCA7AG2,132kw/180HP | 2500 | 3000*1520*1800 |
| KSZJ-18/17 | 18 | 636 | 17 | 247 | YuChai YC6M260L-K20,192kw/260HP | 3200 | 3000*1800*2000 |
| KSZJ-29/23 | 29 | 1024 | 23 | 334 | YuChai YC6M395L-K20,290kw/395HP | 4800 | 3500*1950*2030 |
| KSZJ-31/25 | 31 | 1095 | 25 | 363 | YuChai YC6K500L,368kw/500HP | 6000 | 3500*2100*2200 |
| LGZJ-31/25 | 31 | 1095 | 25 | 363 | YuChai YC6M395L-K20,290kw/400HP | 4800 | 3500*1950*2030 |
