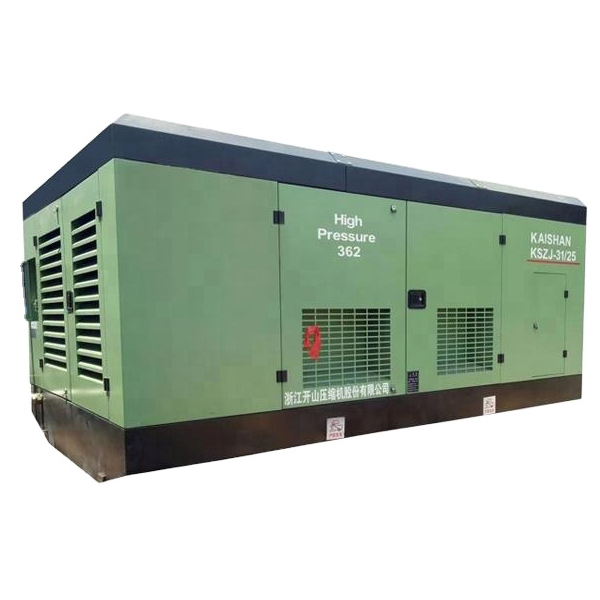

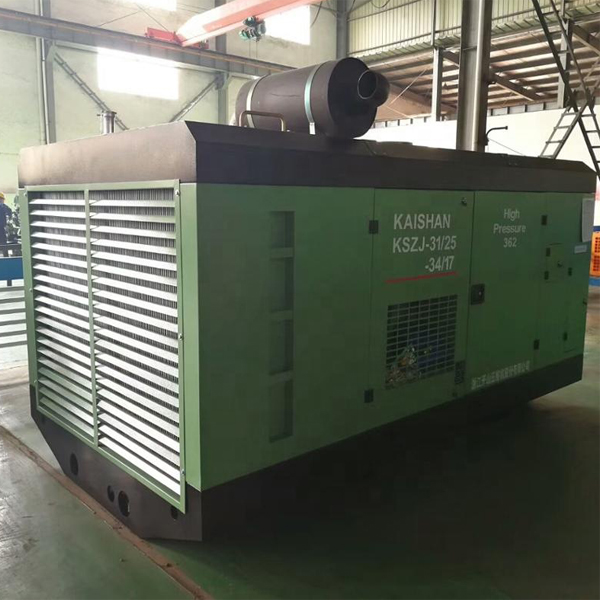

KSZJ-31/25 Stationary Screw Air Compressor

F.A.D: 31m3/min
Rated Discharge Pressure: 25Bar
Total Weight: 6000kg
Dimension:3500*2100*2200mm


Model No.Capacity (F.A.D)Working PressureDiesel EngineWeightSize
m3/mincfmbarPsi
kg(L*W*H)mm
KSZJ-15/14.51553014.5210YuChai YCA7AG2,132kw/180HP25003000*1520*1800
KSZJ-18/171863617247YuChai YC6M260L-K20,192kw/260HP32003000*1800*2000
KSZJ-29/2329102423334YuChai YC6M395L-K20,290kw/395HP48003500*1950*2030
KSZJ-31/2531109525363YuChai YC6K500L,368kw/500HP60003500*2100*2200
LGZJ-31/2531109525363YuChai YC6M395L-K20,290kw/400HP48003500*1950*2030
