ZGYX412 DTH Surface Drill Rig

Hole Range: 90-110mm
Rotation Torque (Max.): 1650N.m
Rotation Speed: 70-150rpm
Total Weight: 3600kg/4000kg

ZGYX-412 drill rig operation platform, tramming components, hydraulic system, feed beam & rotary head are upgraded from the original 410F to optimize the functional capability of the drill rig. Piston tramming motor greatly increases the work lift of tramming mechanism, upgraded operation platform can be controlled by one operator instead of two, to increase the work efficiency while lowering drilling cost.

Model

ZGYX-412

Power

Xichai (4DW91-50GBG3U)

Rated Power

37.5kw

Drill Pipe Size

Ø60x2000mm

Hole Range

Ø90-110mm

Rotation Torque (Max.)

1650N.m

Rotation Speed

70-150rpm

Feed Force

15kN

Pull Up Force

25kN

Feed Type

Chain/Cylinder

Tramming Speed (Max.)

2.5km/h

Gradient

25°

Total Weight

3600kg/4000kg

Dimension

4900x2000x2200mm

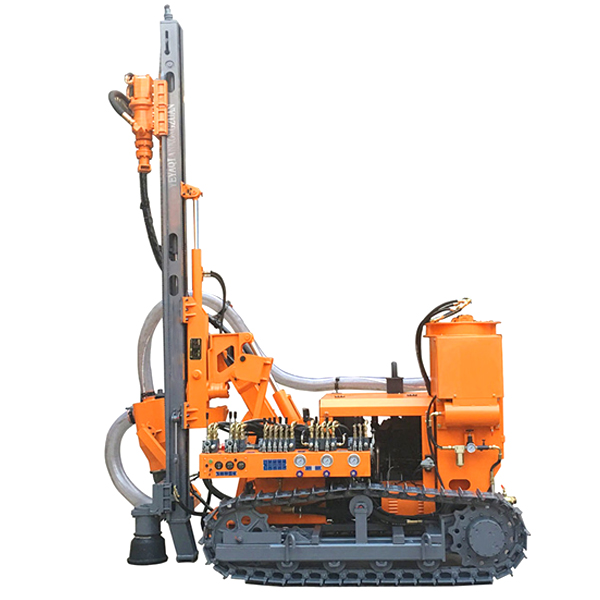

ZGYX412 DTH drill rig.jpg

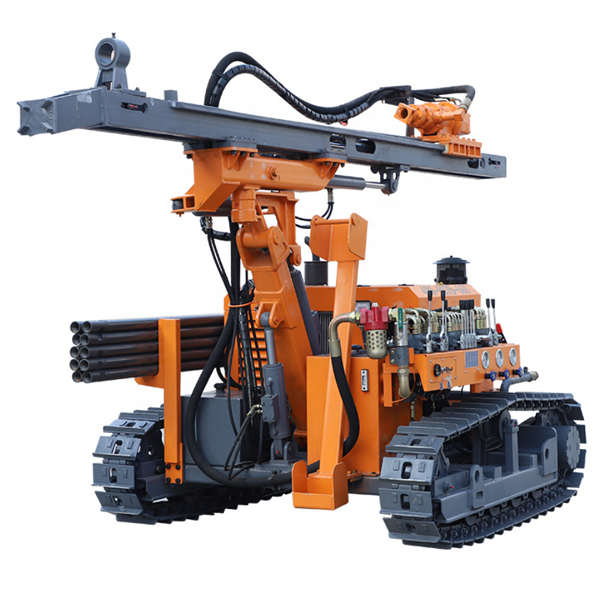

DTH drill rig-2.jpg
