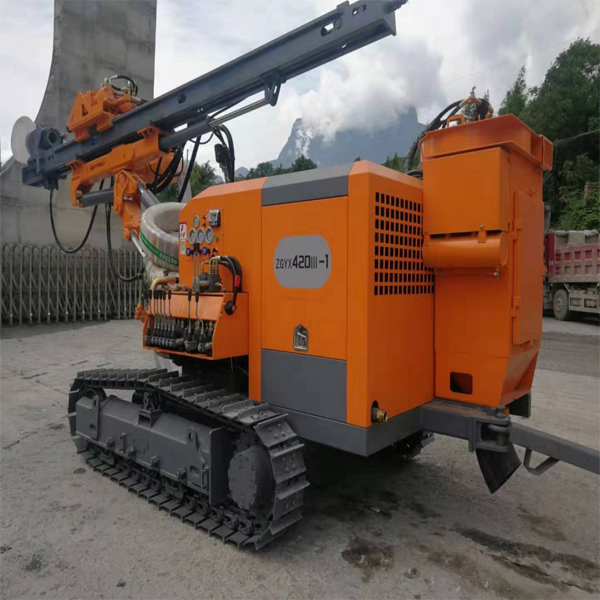

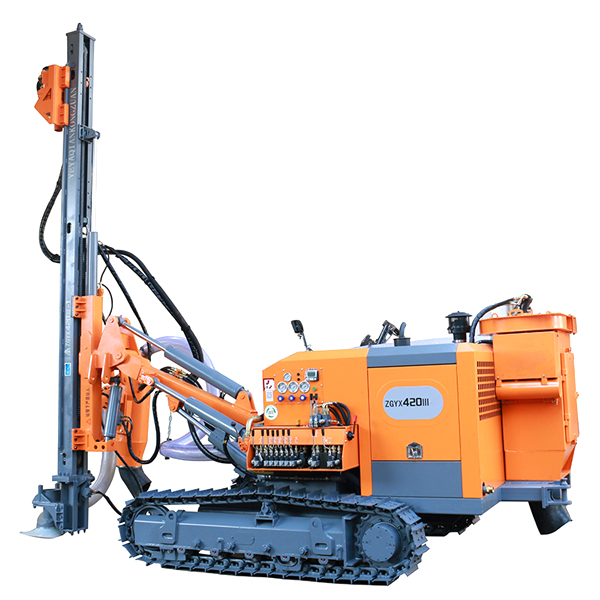

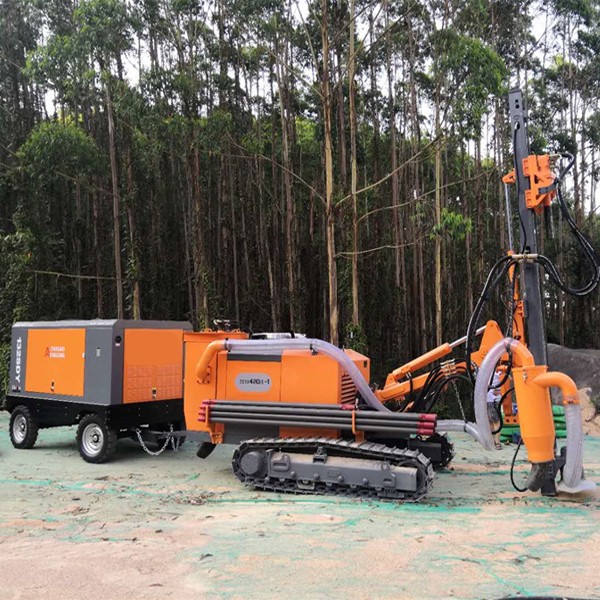

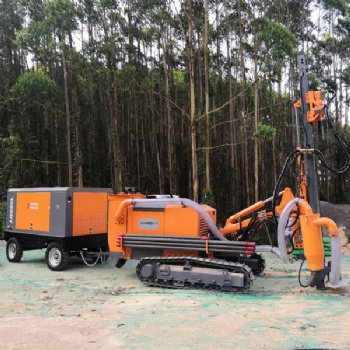

ZGYX420 DTH Surface Drill Rig

Hole Range: 110-138mm
Depth: 30m
Rotation Torque (Max.): 1650N.m
Rotation Speed: 0-100rpm
Total Weight: 5000kg/5500kg

■ Standard equipped with Yuchai 4 cylinder diesel engine or electric motor for 3 meter drill rod with 68mm or 76mm, dry dust collector for option.

■ All structural parts reinforced for various work conditions.

■ The rotation unit driven by cycloid motor for more compact structure and low failure rate.

■ Torque improved for larger hole range drilling and widely used for foundation bolting and anchoring, casing and large hole spiral drilling.

■ New enclosure design for better appearance and convenient for maintenance and service.

■ Optional dry dust collector for dust free drilling, more environment friendly and energy saving.

■ Standard equipped with plunger piston tramming motor for more powerful climbility & more reliable quality.


Model

ZGYX-420

Depth

30m

Drill Pipe Size

Ø76x3000mm

Hole Range

Ø110-138mm

Hammer

4”/5”

Rotation Torque (Max.)

1650N.m

Rotation Speed

0-100rpm

Working Pressure

0.7-2.5Mpa

F.A.D.

8-20m3/min

Feed Force

20kN

Pull Up Force

45kN

Feed Type

Chain/Cylinder

Tramming Speed (Max.)

3km/h

Gradient

25°

Total Weight

5000kg/5500kg

Dimension

5100x2260x2500mm

Dry Dust Collector

Option
