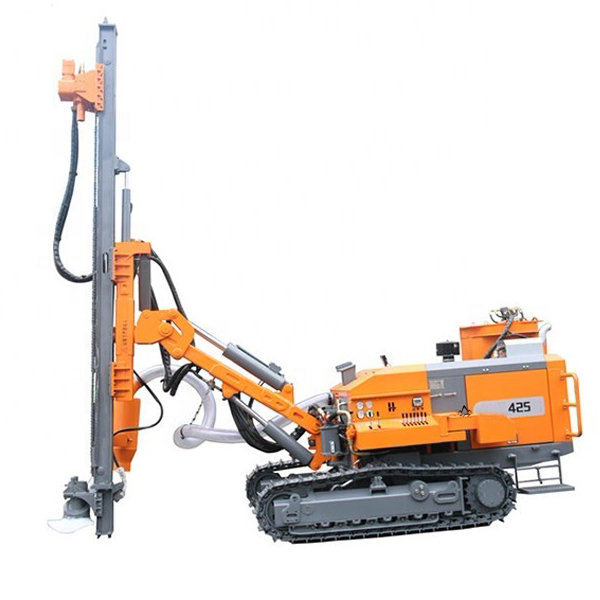

ZGYX425 DTH Surface Drill Rig

Hole Range: 110-138mm
Depth: 30m
Rotation Torque (Max.): 3200N.m
Rotation Speed: 110-138rpm
Total Weight: 6000kg/6500kg
Dimension: 7000x2250x2700mm

Features:

■ Committed to the needs of green mining, we developed this model of low cost high performance, eco-friendly, safe, compact & high efficiency separated DTH drill rig, widely used in various surface mines, quarries & construction work sites, etc.This model is the new generation of Classic product series. With the collective advantages of various different models, this machine with hole range of 110 - 115 mm and new enclosure design, and oscillation, ZGYX-425 product series has excellent ability and outstanding appearance in the same class of products.

■Dual speed tramming piston motor for excellent cross terrain ability and better product reliability.

■High pressure cast iron oil pump for more powerful system and more stable.

■Easy accessed integrated control panel with rational layout for easy & convenient operation;dual movable tramming operation platforms with better tramming vision for safety & convenience.

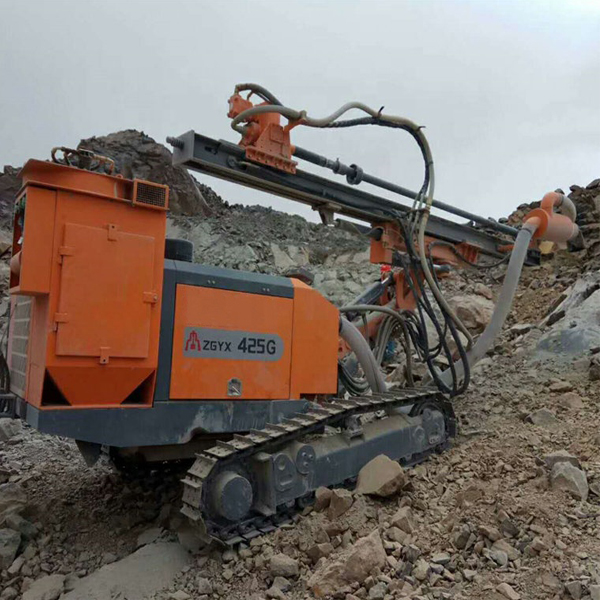

■Equipped with own developed dry dust collection system. ZGYX-425G special designed for 4,000m altitude application.


Technical Parameter:

Model

ZGYX-425

Depth

30m

Drill Pipe Size

Ø76x3000mm

Hole Range

Ø110-138mm

Hammer

4”/5”

Rotation Torque (Max.)

3200N.m

Rotation Speed

0-100rpm

Working Pressure

0.7-2.5Mpa

Length of Feed Beam

5645mm

Feed Travel Length

3660mm

Feed Extension

960mm

Feed Speed

26m/min

Feed Force

20kN

Pull Up Force

45kN

Feed Type

Chain & Clinder

Tramming Speed (Max.)

2.5km/h

Gradient

25°

Ground Clearance

280mm

Total Weight

6000kg/6500kg

Dimension

7000x2250x2700mm

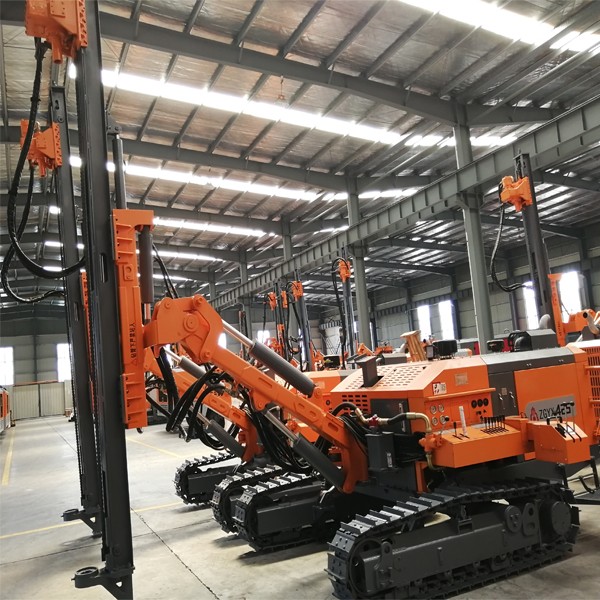

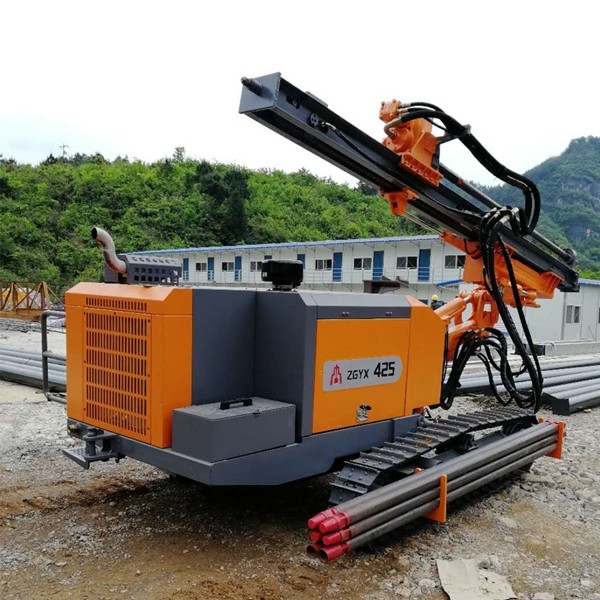

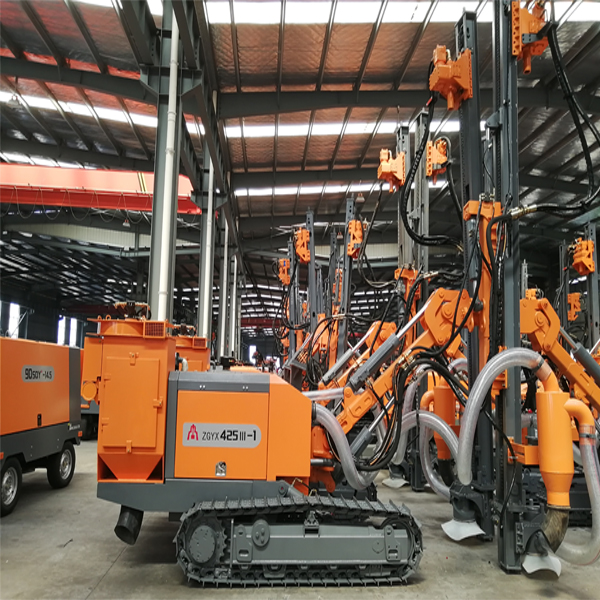

Detailed Show
