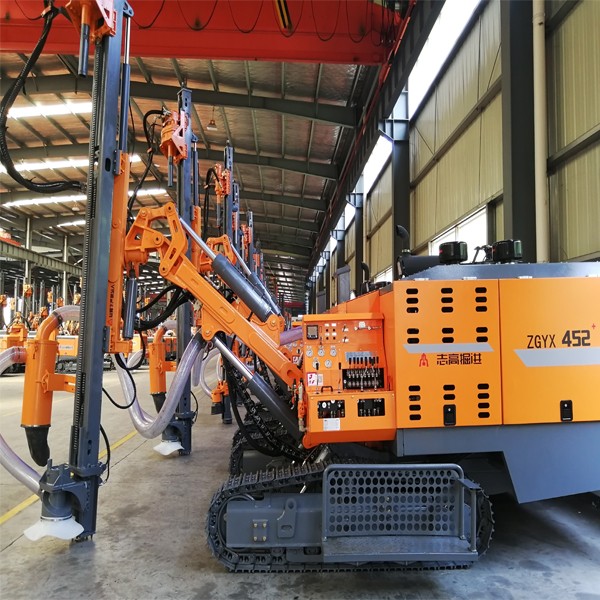

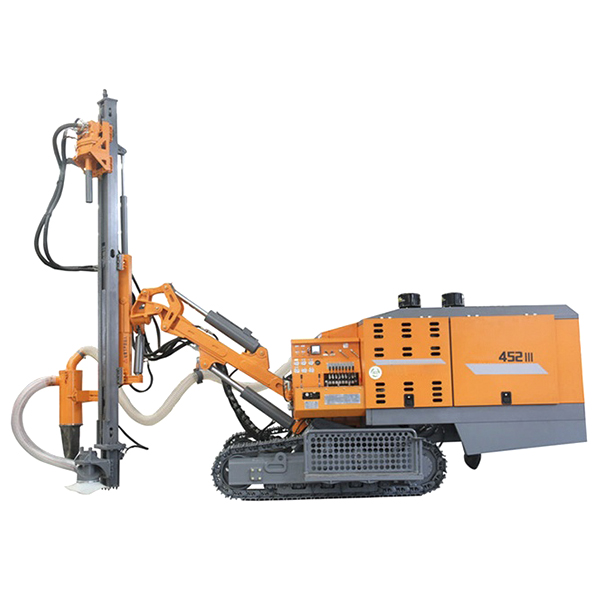

ZGYX452 Integrated DTH Surface Drill Rig

Hole Range: 90-138mm
Depth: 20m
Rotation Torque (Max.): 2500N.m
Rotation Speed: 0-100rpm
Total Weight: 11300kg
Dimension: 7550x2500x3060mm

Features:

■ High-end product at low-end price for best cost performance ratio.

■ ZGYX-452 integrated DTH surface drill rig with single power pack(only one diesel engine )to drive both screw air compressor and hydraulic system. The most important advantage is energy saving, comparing with separated drill rigs, the fuel consumption is reduced by 35% and maintenance cost down by 50%.

■ Powerful two-speed hydraulic ramming mechanism with fast tramming speed and excellent off-road performance.

■ Bigger and stronger designed rotation unit for smooth high torque output and less drill tools jamming.

■ Two stage dry dust collector for friendly environment and higher production efficiency.

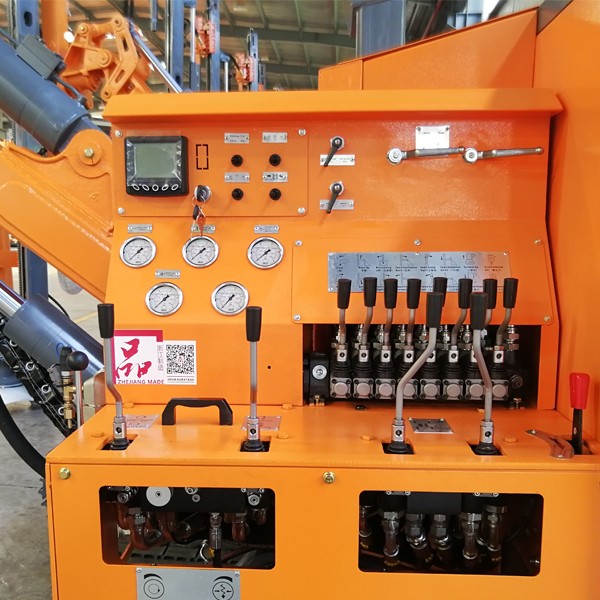

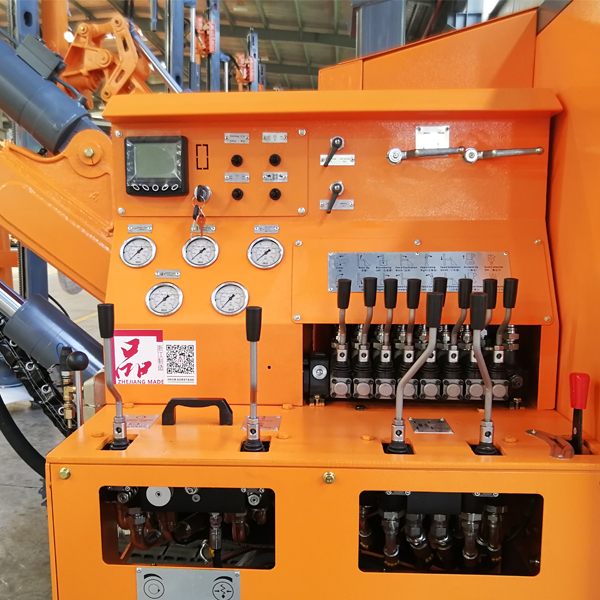

■ Centralized control console and reasonable layout for clear function view and convenient to operate.

■ Core hydraulic parts with global famous brands for reliable hydraulic system to ensure low maintenance costs and convenient& practical.

■ Integrated design(air compressor on board )increases the mobility for better long-distance fleet management.


Technical Parameter:

Model

ZGYX-452

Depth

20m

Drill Pipe Size

Ø76x3000mm

Hole Range

Ø90-138mm

Hammer

4”

Rotation Torque (Max.)

2500N.m

Rotation Speed

0-100rpm

Working Pressure

17bar

F.A.D.

16m3/min

Tramming Speed (Max.)

3km/h (High Speed) , 2km/h (Low Speed)

Gradient

23°

Leveling Angle

±14°

Total Weight

11300kg

Dimension

7550x2500x3060mm

Dry Dust Collector

Standard

Dual Speed Walking Motor

Standard
