ZGYX430 DTH Surface Drill Rig
Hole Range: 110-165mm Depth: 30m Rotation Torque (Max.): 3500N.m Rotation Speed: 0-100rpm Total Weight: 7000kg/7500kg Dimension: 7370x2360x2560mm
Features:
■ This model is the classic product series of separated drill rigs, and with full function design of super intensity and high-level configuration, is approved by many users.
■ High pressure oil pump for various hole sizes and working conditions.
■ Maximum rotation torque up to 5,500 N.m as option for foundation bolting and anchoring, casing and large hole spiral drilling.
■ Large displacement dust collector for φ165mm hole dust collection requirements.
■ Heavy duty structure design for 200mm hole spiral drilling.
■ Maximum rotation torque up to 5,500 N.m
■ The heavy duty tramming mechanism with oscillation for various working conditions.
Technical Parameter:
Model | ZGYX-430 |
Depth | 30m |
Drill Pipe Size | Ø76x3000mm |
Hole Range | Ø110-165mm |
Hammer | 4”/5” |
Rotation Torque (Max.) | 3500N.m |
Rotation Speed | 0-100rpm |
Working Pressure | 0.7-2.5Mpa |
F.A.D. | 10-20m3/min |
Feed Force | 20kN |
Pull Up Force | 45kN |
Tramming Speed (Max.) | 3km/h |
Gradient | 30° |
Total Weight | 7000kg/7500kg |
Dimension | 7370x2360x2560mm |
Dry Dust Collector | Optional |

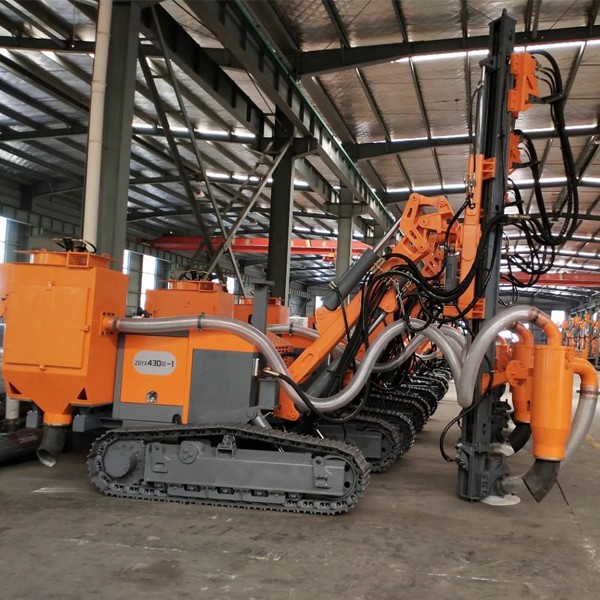

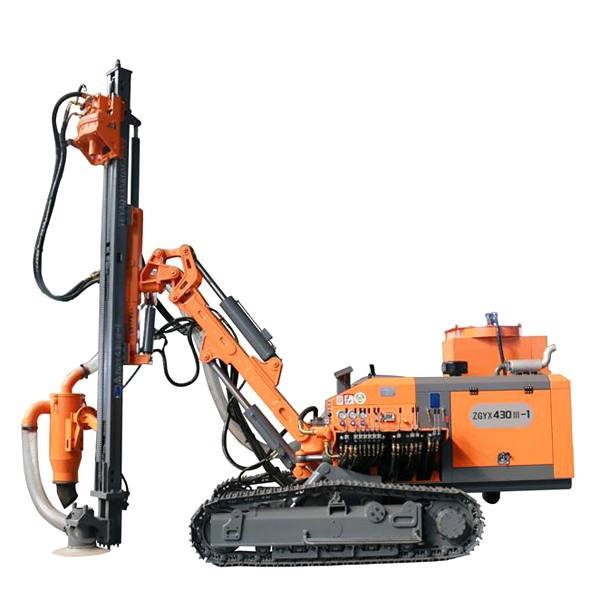

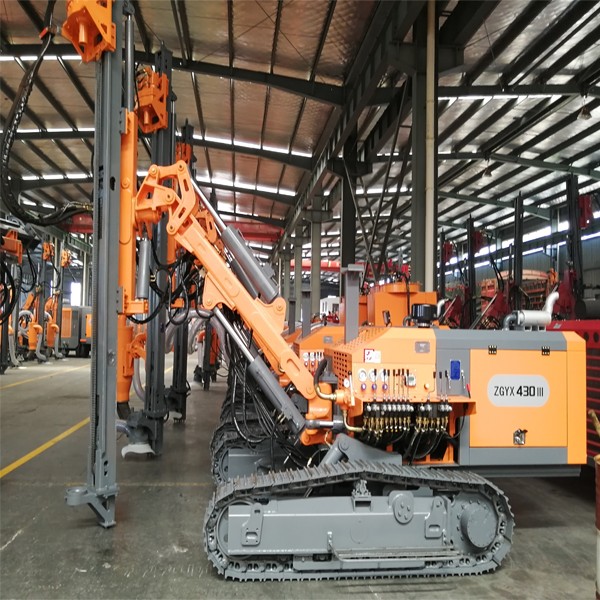

Detailed Show
